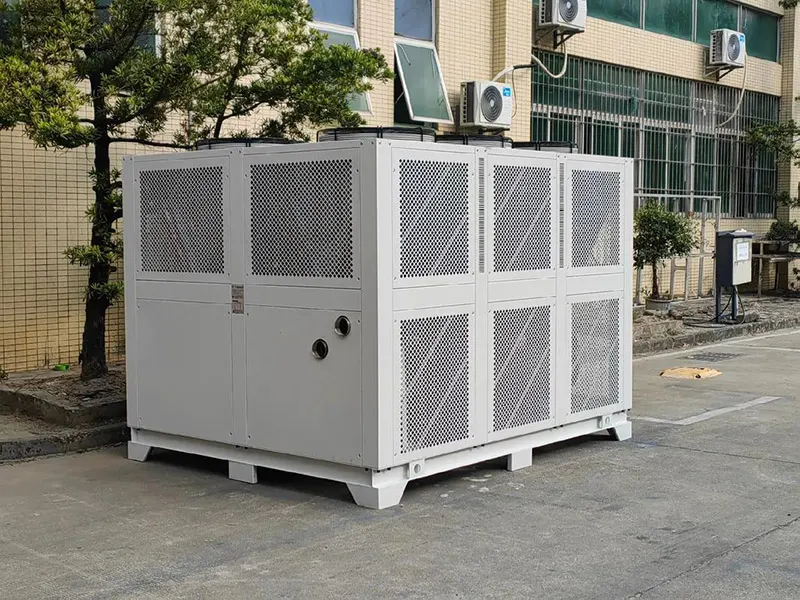

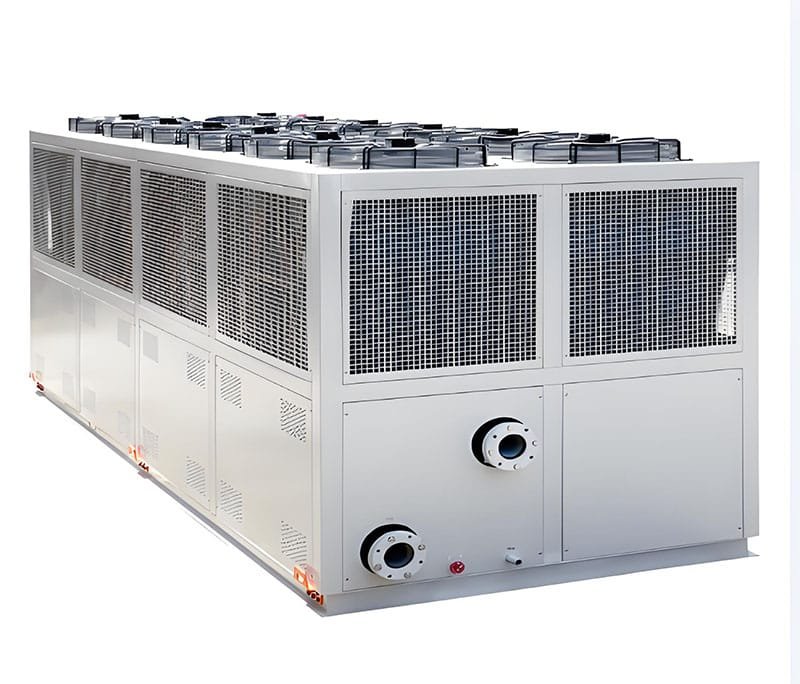

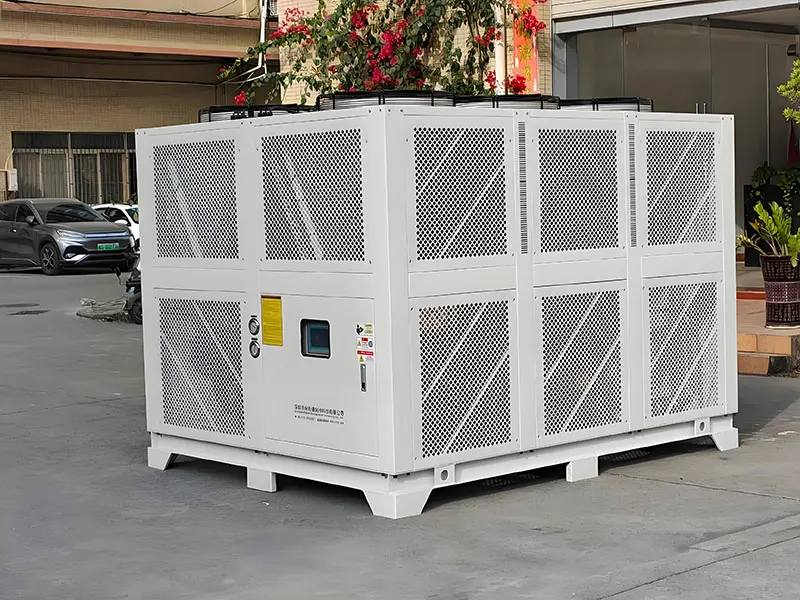

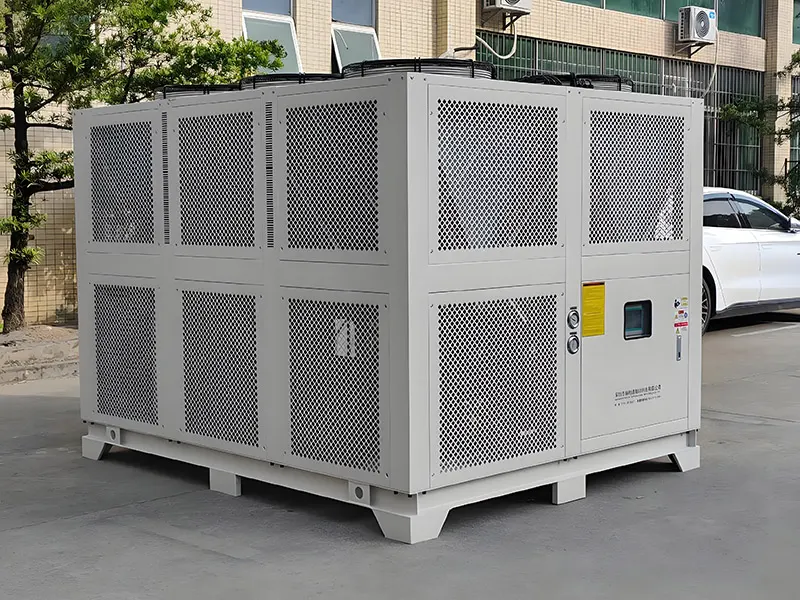

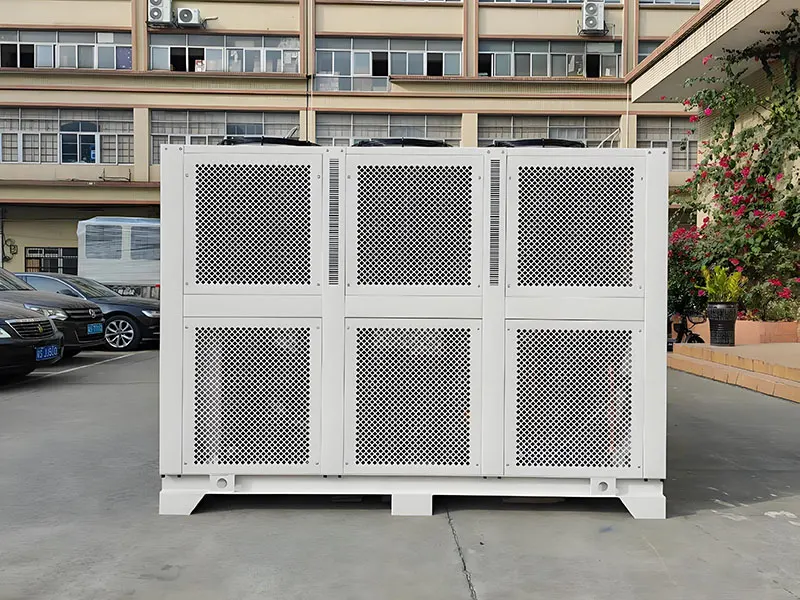

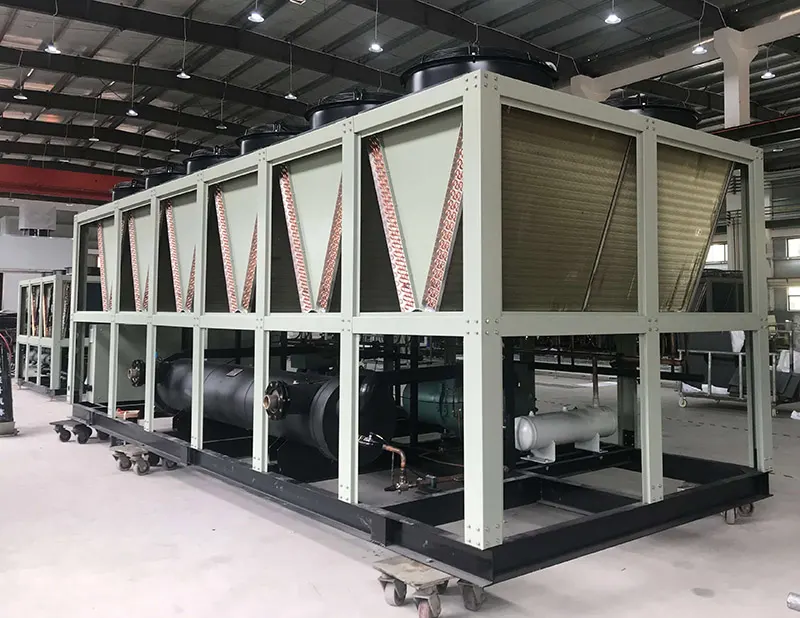

Qile Air Cooled Screw Chiller
An industrial chiller is a cooling system that removes heat from processes, equipment, or spaces in industrial settings. It circulates chilled water or coolant to absorb excess heat, using refrigeration components (compressor, evaporator, condenser, expansion valve) to reject the heat to the surrounding air or water. Industrial chillers are critical for maintaining optimal temperatures in various applications like manufacturing, plastics,rubber,food, beverage, semi-conductor testing, food processing, and so on.
Description
Air cooled water chiller absorb heat from processing water or application, and then the heat is transferred to the air outside through condenser fans. This type of air cooled chiller is widely used where the water resource is insufficient or the water quality is not very good. The most convenient is that cooling tower is not required for air cooled water chiller system, so it is easy for installation and less maintenance.
Qile industrial air cooled chillers come with various cooling capacity from 5 ton to 100 tons and widely used in many industrial processing such as plastic injection molding, plastic extruding, blow molding, PECM, CNC cooling, gas station, brewery, chemicals, welding, HVAC, etc…
FEATURES

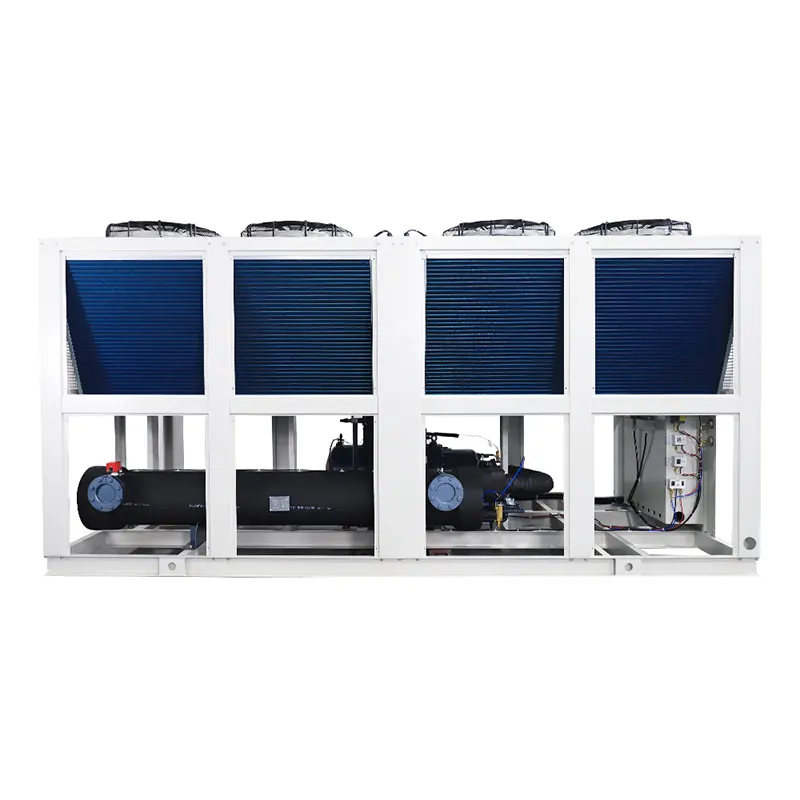

- Evaporator: Two type evaporator available depends on cooling process demands, Plate&Shell and tube, Outside with 30mm thick insulation sheet to keep less cooling loss.
- Tank: Buffer water Tank available, inside with water level sensor and float ball valve to monitoring water level and control auto-filling, Stainless steel materialwith reliable corrosion resistance, easy to clean.
- Water Pump: Both horizontal and vertical circulation water pump available,stainless steel pump with large flow, stable pressure & corrosion resistance.
- Electrics: Adopt brand Schneider electric components,ensure stable, safety operation and long serving life.
- Control System: Micro-computer controller is able to monitor the running status of the system, timely detection faults and abnormalities, and take protection measures.
- Refrigerant: Variety Eco-friendly refrigerant optional by R22,R410A,R407C,R134A, R513A, R404A.
How does one air cooled water chiller works ?
An air-cooled water chiller works by removing heat from water, which then cools equipment or process.
Warm water from the equipment or process being cooled flows into the chiller. Inside the chiller, this water passes through the evaporator, where it comes into contact with a refrigerant. The refrigerant absorbs heat from the water, cooling it down. The now-cooled water is circulated back to the equipment to absorb more heat.
By continuously circulating chilled water to the equipment and dissipate heat into the air, the chiller helps maintain optimal operating temperatures.
